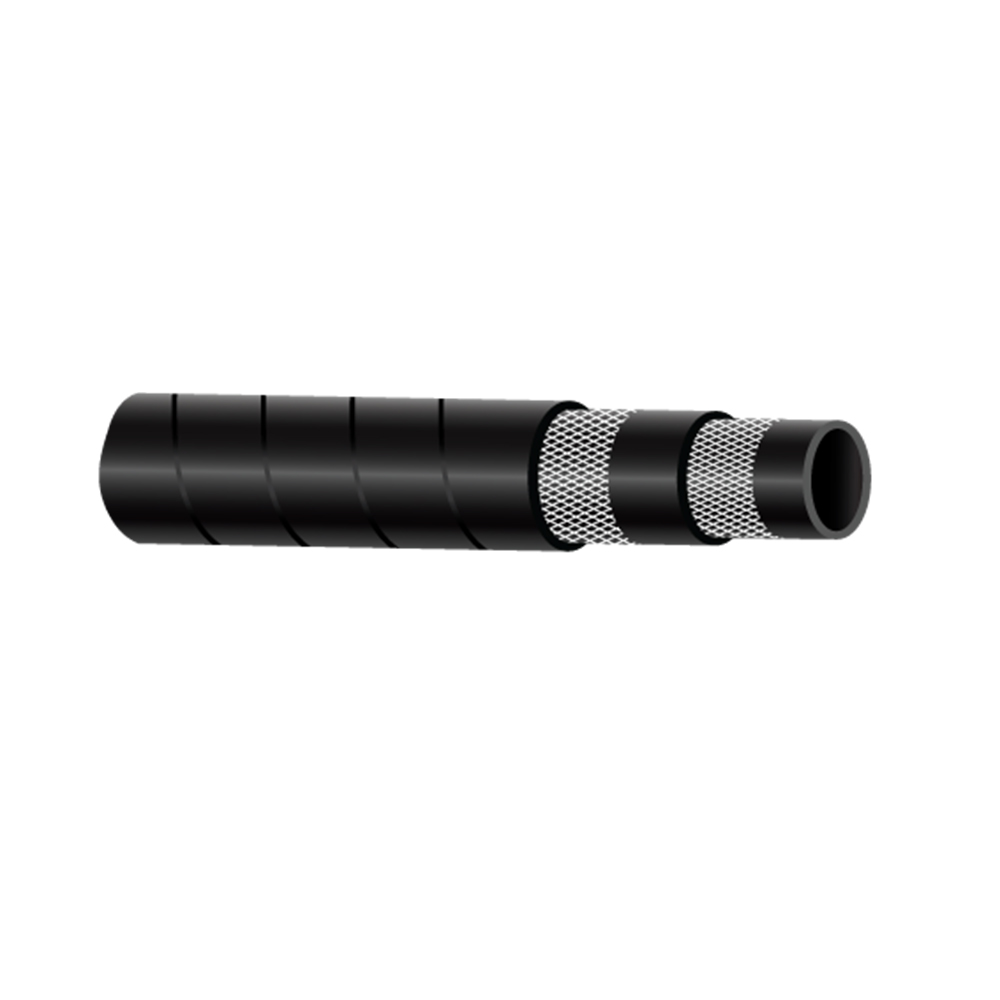

Super Spray Hose
Super Spray Hose
Tube: Modified Nitrile Rubber Compound, Black
Reinforcement: Double braided high tensile yarn
Cover: Synthetic Rubber resistance to weather, ozone and abrasion
Temp Range: -30° C +82° C Approx (-22° F +180° F)
Applications: For very high-pressure spray applications like pesticides and chemicals in agriculture and forestry
Properties: High-Pressure, Weather resistance, Flexible
Standard Colour And Finish: Inner tube – Black, Outer cover – Black, Finish – Wrapped
Applicable Std: ISO 1677 Type 3A
Specification
| PART NO. | INTERNAL DIAMETER | OUTER DIAMETER | WORKING PRESSURE | BURSTING PRESSURE | BENDING RADIUS | WEIGHT | STD. LENGTH | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | mm | mm | bar | psi | bar | psi | Inch | mm | Kg/m | Mtr | |
| BRIH001-08 | 5/16 | 8 | 18 | 55 | 800 | 165 | 2400 | 3.1 | 80 | 0.32 | 100 |
| BRIH001-10 | 3/8 | 10 | 20 | 55 | 800 | 165 | 2400 | 4 | 102 | 0.37 | 100 |
| BRIH001-12 | 1/2 | 12.5 | 23.5 | 55 | 800 | 165 | 2400 | 5 | 127 | 0.49 | 100 |
