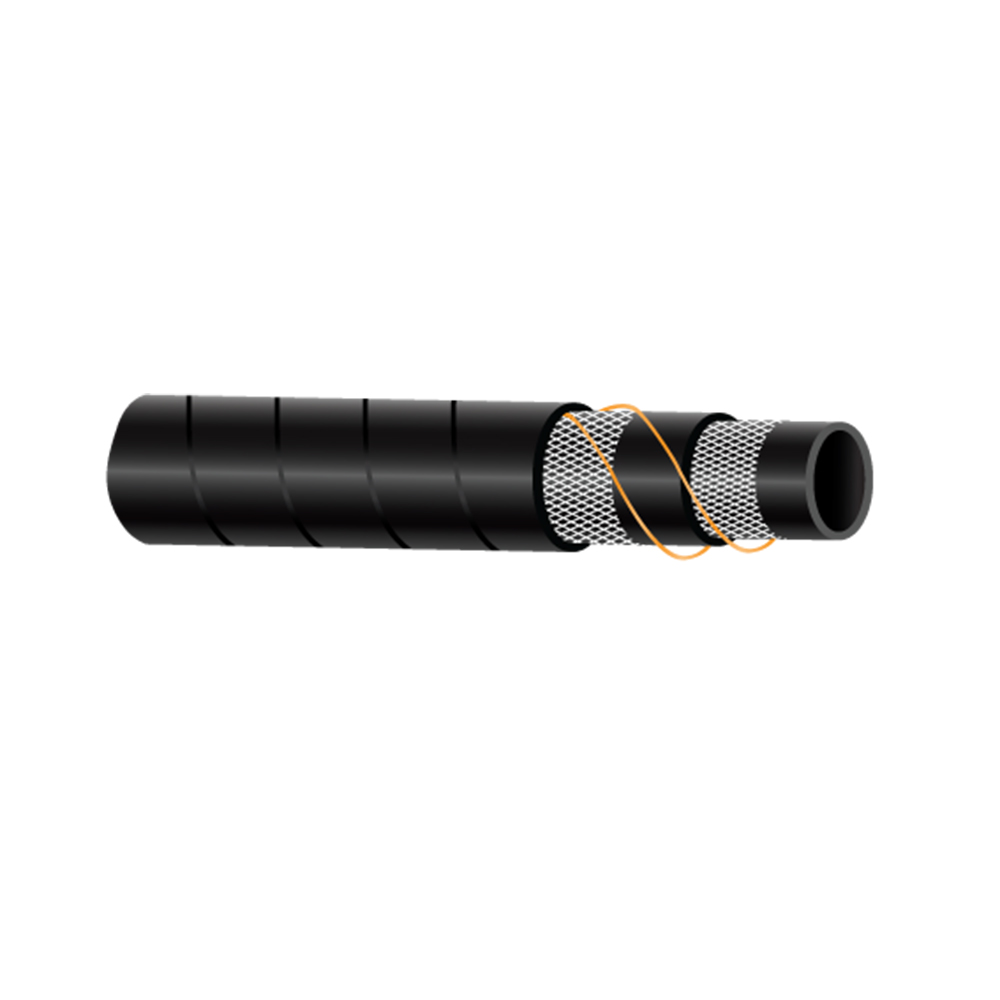

Sandblast Hose
Sandblast Hose
Tube: Antistatic NR/PBR blend rubber with excellent abrasion resistance
Reinforcement: Two braids of High tensile synthetic Yarn with antistatic copper flex wire
Cover: NR/ SBR cover – resistant to abrasion and weather
Temp Range: -40°C + 80°C (-40°F to +176°F)
Applications: Suitable for Conveying all commonly used materials for blasting, such as steel shot, steel grit, garnet, copper slag, coal slag, Aluminium Oxide, Glass Breeds etc.
Properties: High Abrasion resistance (abrasion loss of the tube according to ISO 4649: 50+5mm³)
Standard Colour And Finish: Inner tube – Black, Outer Cover – Black, Finish – Wrapped
Applicable Std: ISO 5894, ISO 3861
Specification
| PART NO. | INTERNAL DIAMETER | OUTER DIAMETER | WORKING PRESSURE | BURSTING PRESSURE | BENDING RADIUS | WEIGHT | STD. LENGTH | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | mm | mm | bar | psi | bar | psi | Inch | mm | Kg/m | Mtr | |
| BRIH001-12a | 1/2 | 12.5 | 27 | 12 | 175 | 36 | 525 | 5.9 | 150 | 0.55 | 40 |
| BRIH001-12b | 1/2 | 12.5 | 33 | 12 | 175 | 36 | 525 | 6.7 | 170 | 0.83 | 40 |
| BRIH001-19a | 3/4 | 19 | 33 | 12 | 175 | 36 | 525 | 6.9 | 175 | 0.72 | 40 |
| BRIH001-19b | 3/4 | 19 | 38 | 12 | 175 | 36 | 525 | 7.9 | 200 | 1.04 | 40 |
| BRIH001-25a | 1 | 25 | 40 | 12 | 175 | 36 | 525 | 9.1 | 230 | 0.9 | 40 |
| BRIH001-25b | 1 | 25 | 48 | 12 | 175 | 36 | 525 | 11.8 | 300 | 1.44 | 40 |
| BRIH001-32a | 1.1/4 | 32 | 48 | 12 | 175 | 36 | 525 | 10 | 255 | 1.16 | 40 |
| BRIH001-32b | 1.1/4 | 32 | 54 | 12 | 175 | 36 | 525 | 12.6 | 320 | 1.88 | 40 |
| BRIH001-38a | 1.1/2 | 38 | 54 | 12 | 175 | 36 | 525 | 11.8 | 300 | 1.46 | 40 |
| BRIH001-38b | 1.1/2 | 38 | 60 | 12 | 175 | 36 | 525 | 17.7 | 450 | 2.01 | 40 |
| BRIH001-51a | 2 | 51 | 68 | 12 | 175 | 36 | 525 | 25.6 | 650 | 2.13 | 40 |
| BRIH001-51b | 2 | 51 | 73 | 12 | 175 | 36 | 525 | 27.6 | 700 | 2.7 | 40 |
