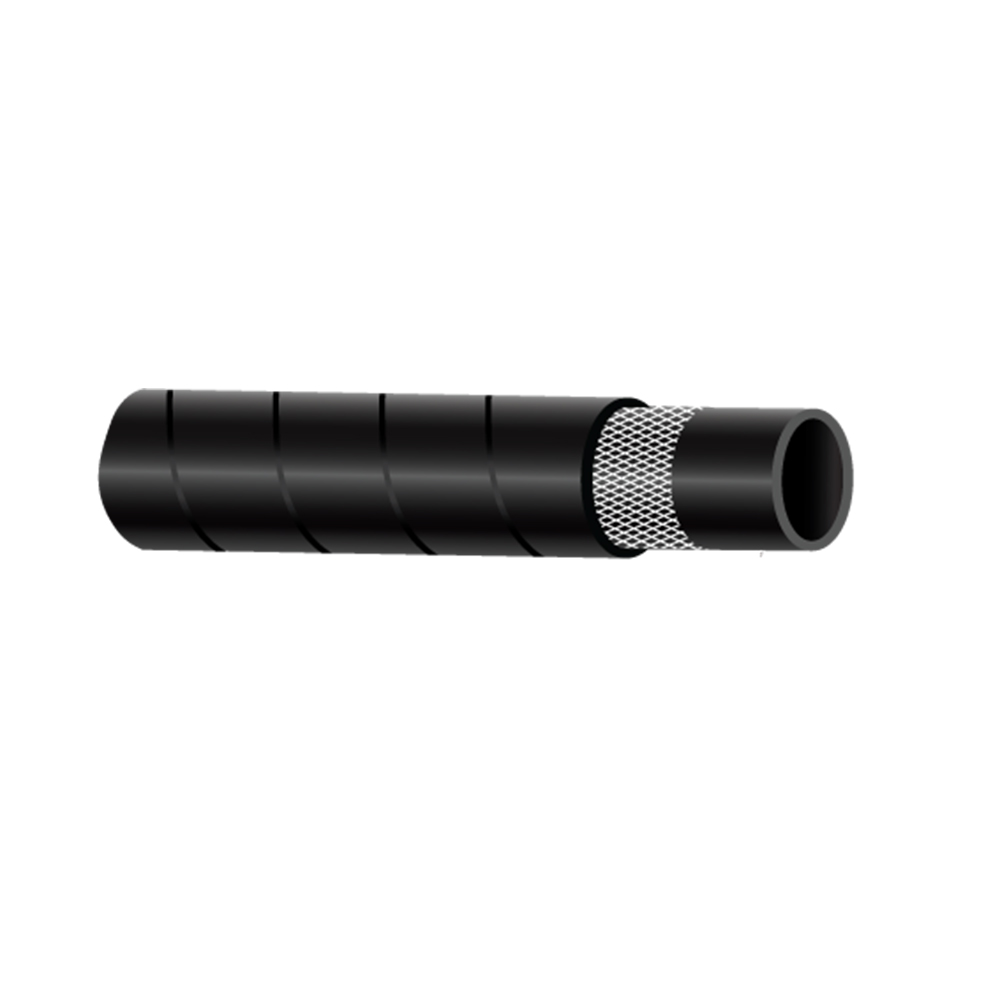

Sae 100 R6
Sae 100 R6
Tube: Black, oil-resistant synthetic rubber (NBR)
Reinforcement: Single braid high tensile yarn
Cover: Black, oil and abrasion-resistant synthetic rubber
Temp Range: -40° C +100° C approx. (-40° F +212° F approx.)
Applications: For low pressure, hydraulic lines applied in various applications like earthmoving and other adjacent industries
Properties: Uniform Thickness, High Pressure, Flexible
Standard Colour And Finish: Inner tube – Black, Outer Cover – Black, Finish – Wrapped
Applicable Std: Bhagwati Rubber Industries
Specification
| PART NO. | INTERNAL DIAMETER | OUTER DIAMETER | WORKING PRESSURE | BURSTING PRESSURE | BENDING RADIUS | WEIGHT | STD. LENGTH | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | mm | mm | bar | psi | bar | psi | Inch | mm | Kg/m | Mtr | |
| BRIH304-06 | 1/4 | 6 | 12.7 | 35 | 508 | 140 | 2030 | 2 | 51 | 0.13 | 100/50 |
| BRIH304-08 | 5/16 | 8 | 14.3 | 28 | 406 | 112 | 1624 | 2.5 | 64 | 0.15 | 100/50 |
| BRIH304-10 | 3/8 | 10 | 16 | 28 | 406 | 112 | 1624 | 3 | 76 | 0.18 | 100/50 |
| BRIH304-12 | 1/2 | 12.5 | 19.8 | 28 | 406 | 112 | 1624 | 3 | 76 | 0.23 | 100/50 |
| BRIH304-16 | 5/8 | 16 | 23.1 | 24 | 348 | 112 | 1624 | 4 | 101 | 0.32 | 50 |
| BRIH304-19 | 3/4 | 19 | 26.6 | 21 | 305 | 96 | 1392 | 5 | 127 | 0.43 | 50 |
| BRIH304-25 | 1 | 25 | 32.5 | 15 | 210 | 84 | 1218 | 6 | 152 | 0.5 | 50 |
