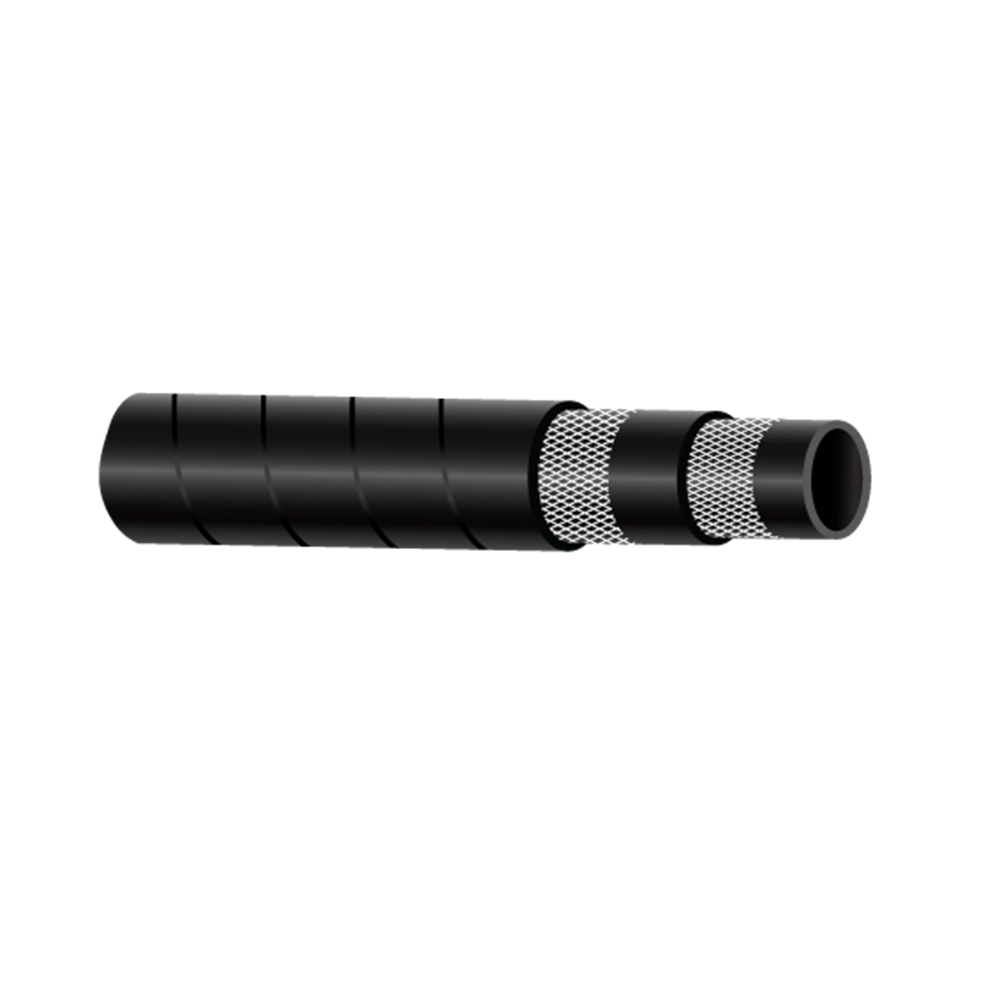

Sae 100 R3
Sae 100 R3
Tube: Black, oil-resistant synthetic rubber (NBR)
Reinforcement: Double braided high tensile yarn
Cover: Black, oil and abrasion-resistant synthetic rubber
Temp Range: -40° C +100° C approx. (-40° F +212° F approx.)
Applications: For medium-pressure Hydraulic Lines applied in various applications like earthmoving and other adjacent industries
Properties: Uniform Thickness, High Pressure, Flexible
Standard Colour And Finish: Inner Tube – Black, Outer Cover – Black, Finish – Wrapped
Applicable Std: Bhagwati Rubber Industries
Specification
| PART NO. | INTERNAL DIAMETER | OUTER DIAMETER | WORKING PRESSURE | BURSTING PRESSURE | BENDING RADIUS | WEIGHT | STD. LENGTH | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | mm | mm | bar | psi | bar | psi | Inch | mm | Kg/m | Mtr | |
| BRIH301-06 | 1/4 | 6 | 14.3 | 87 | 1250 | 348 | 5046 | 3 | 76 | 0.16 | 100+ |
| BRIH301-08 | 5/16 | 8 | 17.5 | 84 | 1218 | 336 | 4872 | 4 | 101 | 0.24 | 100+ |
| BRIH301-10 | 3/8 | 10 | 19.1 | 78 | 1131 | 312 | 4524 | 4 | 101 | 0.28 | 100+ |
| BRIH301-12 | 1/2 | 12.5 | 23.5 | 70 | 1015 | 280 | 4060 | 5 | 127 | 0.38 | 100+ |
| BRIH301-16 | 5/8 | 16 | 27 | 61 | 885 | 244 | 3538 | 5.5 | 140 | 0.45 | 100+ |
| BRIH301-19 | 3/4 | 19 | 31.8 | 52 | 754 | 208 | 3016 | 6 | 152 | 0.63 | 100+ |
| BRIH301-25 | 1 | 25 | 38 | 39 | 566 | 156 | 2250 | 11.9 | 303 | 0.75 | 100 |
| BRIH301-32 | 1.1/4 | 32 | 44.5 | 26 | 377 | 104 | 1500 | 10 | 254 | 0.97 | 50 |
| BRIH301-38 | 1.1/2 | 38 | 51 | 17 | 247 | 68 | 986 | 12 | 305 | 1.23 | 50 |
| BRIH301-51 | 2 | 51 | – | 15 | 218 | 60 | 870 | 16.1 | 409 | – | 40 |
