Rubber Hose For Steam Type I & Type II
Rubber Hose For Steam Type I & Type II
Suitable for all applications involving the supply of saturated steam.
Specification

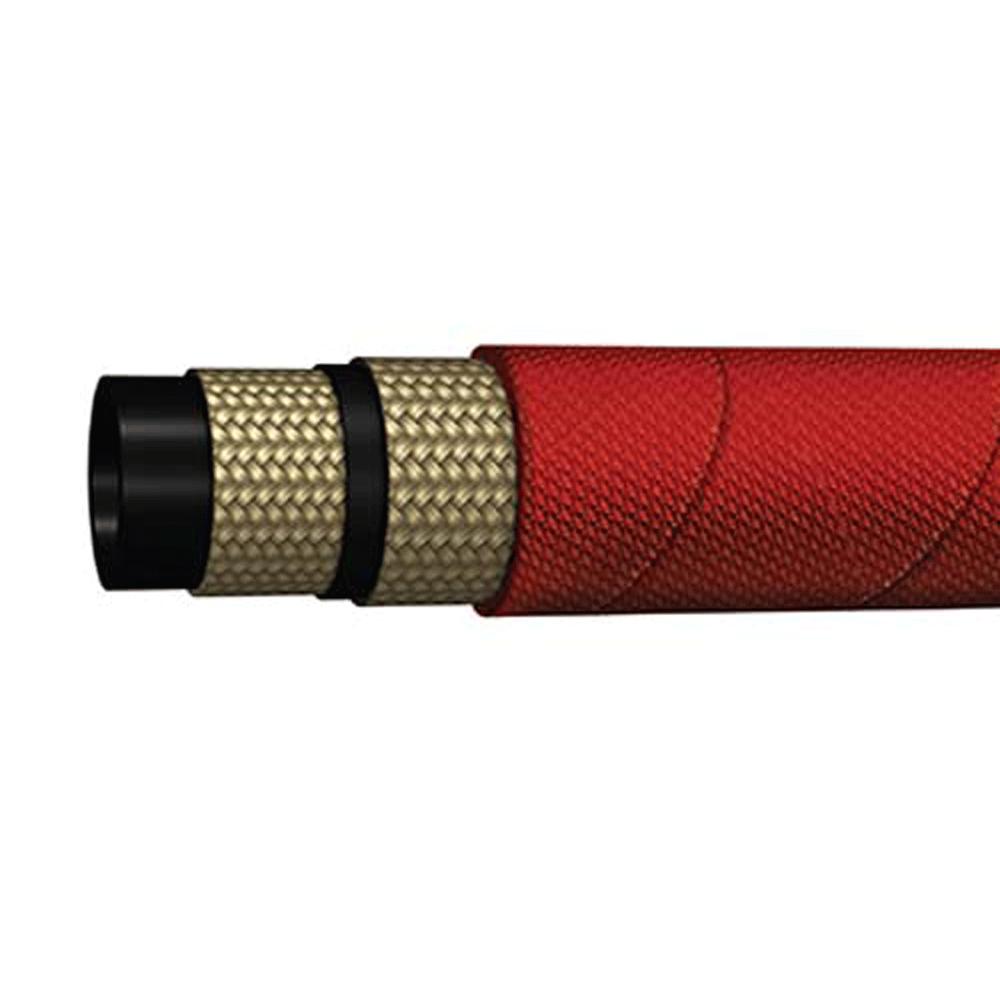

Construction:
- EPDM Rubber Tube – Resistant to steam up to 165°C
- Textile Reinforcement – For added strength and flexibility
- Durable Fluted Cover – Blue or red, resistant to abrasion, steam, and weather
Technical Specifications:
Construction Tube: Seamless, smooth, and uniformly thick inner tube, free from air blisters, porosity, and splits.
Reinforcement: Braided synthetic yarn or multiple plies of woven textile made from natural, synthetic fibers, or a blend of both for added strength.
Cover: Cloth-marked finish made from abrasion-resistant rubber compound for enhanced durability.
Temperature Range: Up to 300°F (149°C)
Length: Available up to 20 meters
| NOMINAL BORE IN MM | WORKING PRESSURE IN PSI | BURSTING PRESSURE IN PSI |
|---|---|---|
| 12.5 | 10 Bar | 40 Bar |
| 16 | 10 Bar | 40 Bar |
| 20 | 10 Bar | 40 Bar |
| 25 | 10 Bar | 40 Bar |
| 28 | 10 Bar | 40 Bar |
| 31.5 | 10 Bar | 40 Bar |
| 35 | 10 Bar | 40 Bar |
| 38 | 10 Bar | 40 Bar |
| 50 | 10 Bar | 40 Bar |
| 56 | 10 Bar | 40 Bar |
