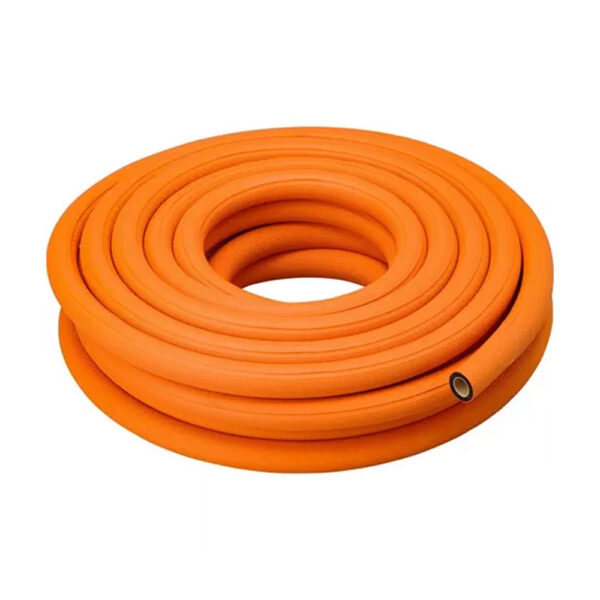

Rubber Hose for LPG Purpose
Rubber Hose for LPG Purpose
Low-pressure LPG hose designed for household and domestic use.
Specification
Construction Lining: Seamless tube made from a blend of natural and synthetic rubber, designed to resist fuel gases, oxygen, and other non-combustible gases.
Reinforcement: Braided with high-strength synthetic yarn or fiber for enhanced durability and flexibility.
Cover: Available with a plain or fluted rubber outer cover, built to endure harsh working environments and ensure long-lasting performance.
Temperature Range: -40°F to +158°F
Length: Manufactured as molded braided hoses in continuous lengths for versatile applications.
Color Identification:
Red – For fuel gases
Blue / Green – For oxygen and other non-combustible gases
Safety Factor: 1:3 (W.P. 200/300 PSI : B.P. 600/900 PSI) or 1:4 (W.P. 200 PSI : B.P. 800 PSI)
| PART NO. | HOSE SIZE | WORKING PRESSURE | BURSTING PRESSURE | LENGTH OF EACH ROLL | ||||
|---|---|---|---|---|---|---|---|---|
| I.D | O.D | in PSI | in BAR | in PSI | in BAR | |||
| inch | mm | mn | ||||||
| BRIH702-06 | 1/4″ | 6 | 12 | 300 | 20 | 900 | 60 | 50/100 Meters |
| BRIH702-08 | 5/16″ | 8 | 14 | 300 | 20 | 900 | 60 | 50/100 Meters |
| BRIH702-09 | 3/8″ | 9 | 16 | 300 | 20 | 900 | 60 | 50/100 Meters |
| BRIH702-12 | 1/2″ | 12.5 | 19 | 300 | 20 | 900 | 60 | 50/100 Meters |
