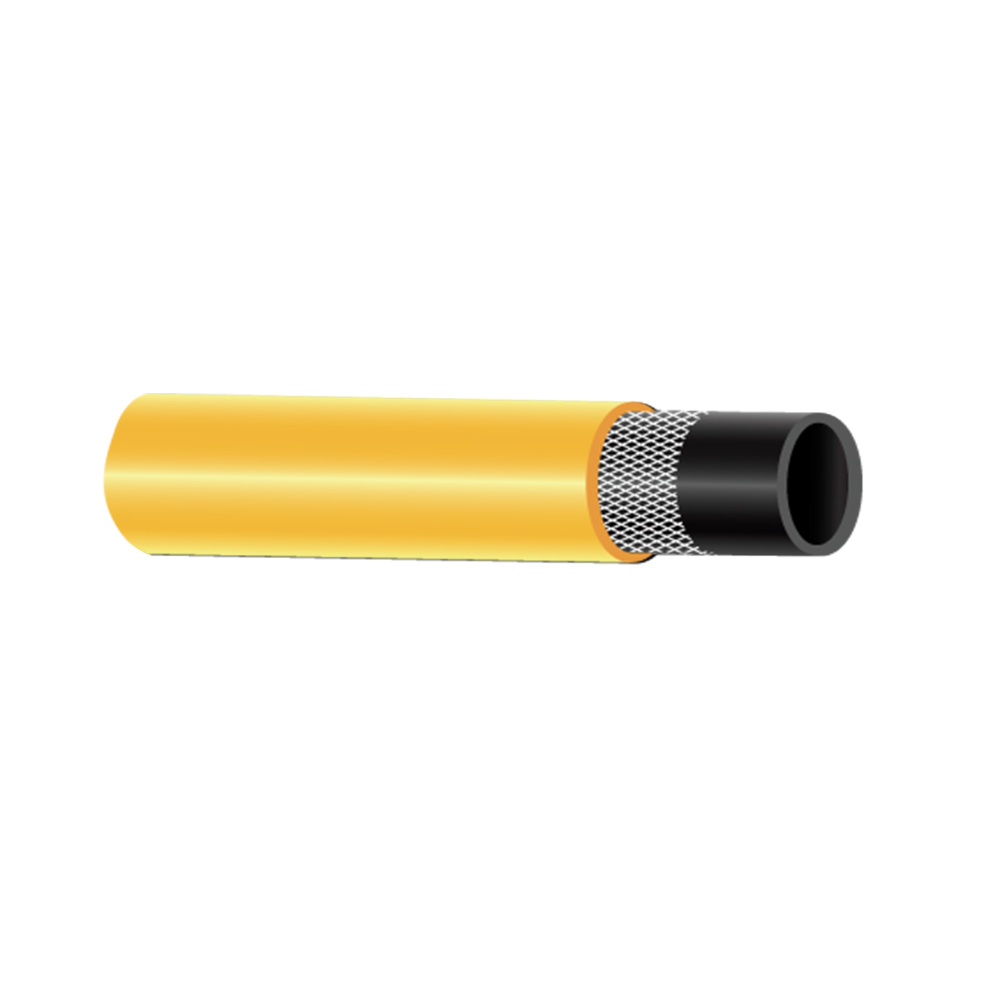

Jackhammer Hose
Jackhammer Hose
Tube: Black synthetic elastomer – oil resistant
Reinforcement: High tensile textile yarn
Cover: Yellow synthetic elastomer – abrasion and ozone resistant
Temp Range: -30° C +80° C (-22° F +176° F)
Applications: A long length air hose for construction and general industry
Properties: Extreme temperature, Flexibility, Oil resistance (RMA CLASS A)
Standard Colour And Finish: Inner tube – Black, Outer cover – Yellow, Finish – Smooth/Wrapped
Applicable Std: ISO 2398 ; IS 446
Specification
| PART NO. | INTERNAL DIAMETER | OUTER DIAMETER | WORKING PRESSURE | BURSTING PRESSURE | BENDING RADIUS | WEIGHT | STD. LENGTH | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | mm | mm | bar | psi | bar | psi | Inch | mm | Kg/m | Mtr | |
| BRIH001-11 | 1/2 | 12.5 | 21 | 20 | 300 | 60 | 900 | 4.5 | 114 | 0.34 | 100/50 |
| BRIH001-14 | 3/4 | 19 | 27 | 20 | 300 | 60 | 900 | 6.4 | 162 | 0.49 | 100/50 |
| BRIH001-16 | 1 | 25 | 35 | 20 | 300 | 60 | 900 | 8.3 | 210 | 0.72 | 100/50 |
