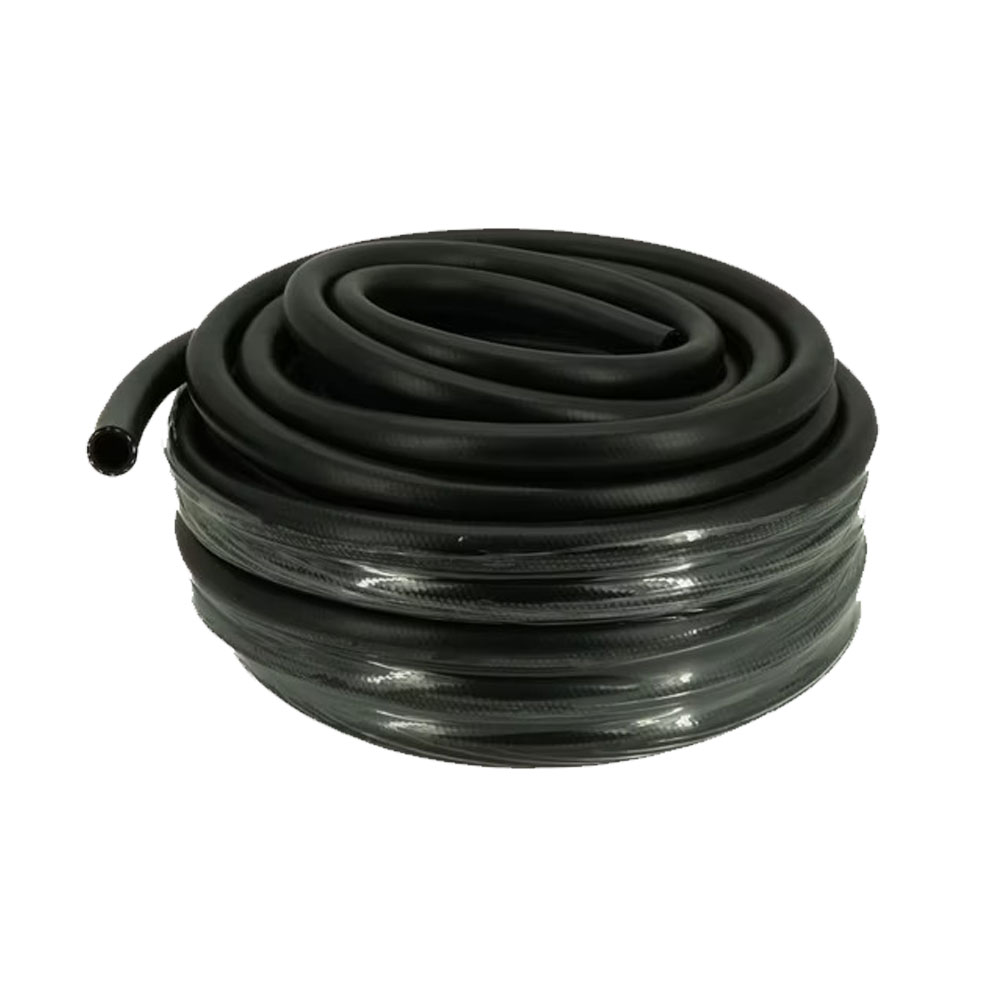

General Purpose Rubber Water Hose
General Purpose Rubber Water Hose
We offer a complete range of water hoses conforming to IS: 444-87 standards, available in both woven textile and braided synthetic yarn reinforcement for all types — Type 1, Type 2, Type 3A, and Type 3B.
Specification
Application:
Suitable for general construction, engineering industries, garages, shipyards, workshops, foundries, steel mills, irrigation projects, and various other air and water applications.
Construction:
- Natural rubber tube
- Textile reinforcement
- Abrasion & weather-resistant cover
Technical Specifications:
Construction Lining: Seamless and uniform lining made from a blend of natural and synthetic rubber for durability and flexibility.
Reinforcement: Multiple plies of woven textile or high-strength synthetic fiber braiding for enhanced pressure resistance.
Cover: Smooth, cloth-marked, or ribbed finish in black or colored outer layer made from weather- and abrasion-resistant natural rubber compound.
Temperature Range: -40°F to +158°F
Length: Available in continuous lengths (braided hoses) and 20-meter mandrel-made hoses.
Color Options: Green, black, or customized as per buyer requirements.
| PART NO. | HOSE SIZE | WORKING PRESSURE | BURSTING PRESSURE | LENGTH OF EACH ROLL | |||
|---|---|---|---|---|---|---|---|
| I.D | O.D | in PSI | in BAR | in PSI | in BAR | ||
| inch | mm | ||||||
| BRIH703-10 | 3/8″ | 10 | 300 | 20 | 900 | 60 | 50/100 Meters |
| BRIH703-12 | 1/2″ | 12.5 | 300 | 20 | 900 | 60 | 50/100 Meters |
| BRIH703-16 | 5/8″ | 16 | 300 | 20 | 900 | 60 | 50/100 Meters |
| BRIH703-19 | 3/4″ | 19 | 300 | 20 | 900 | 60 | 50/100 Meters |
| BRIH703-25 | 1″ | 25 | 300 | 20 | 900 | 60 | 50/100 Meters |
| BRIH703-31 | 1.1/4″ | 31.5 | 300 | 15 | 600 | 45 | 35/20 Meters |
| BRIH703-38 | 1.1/2″ | 38 | 300 | 15 | 600 | 45 | 35/20 Meters |
| BRIH703-50 | 2′ | 50 | 300 | 15 | 600 | 45 | 35/20 Meters |
| BRIH703-63 | 2.1/2″ | 63 | 300 | 10 | 600 | 45 | 7.5 Meters |
| BRIH703-100 | 4″ | 100 | 300 | 10 | 600 | 45 | 7.5 Meters |
