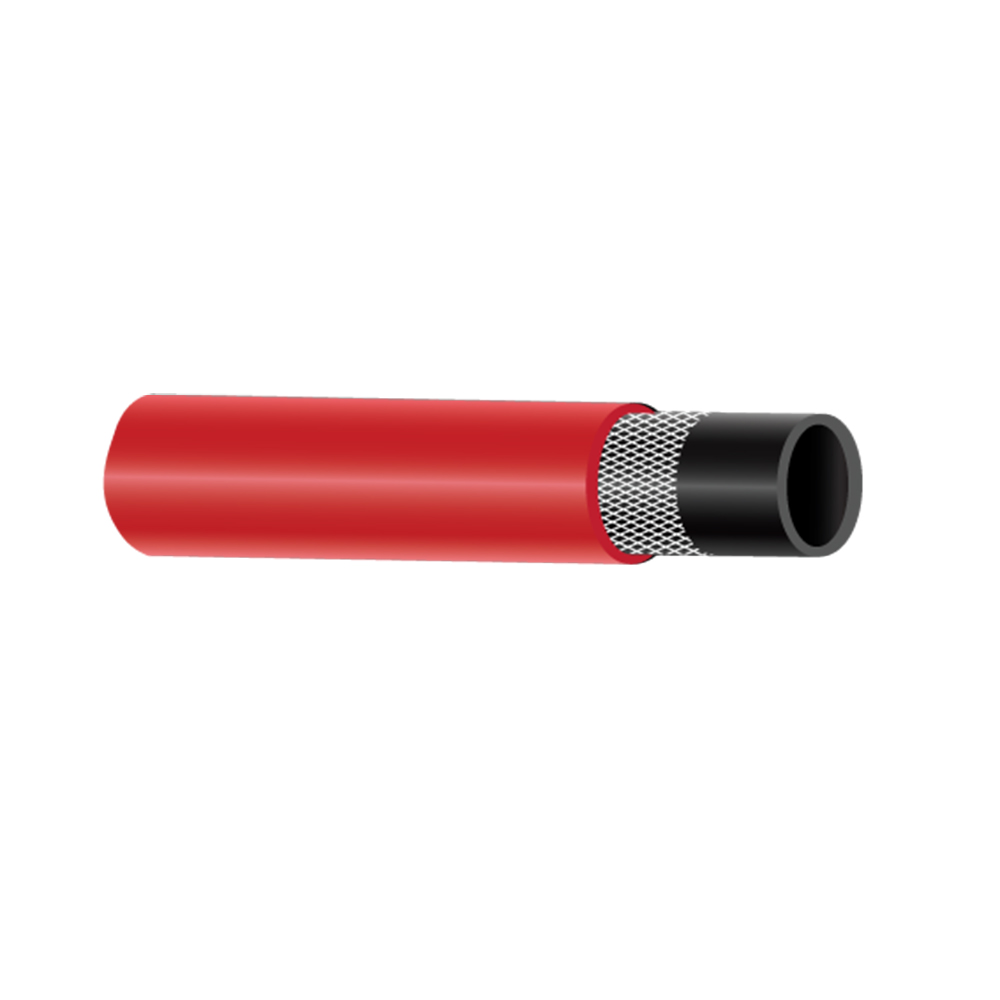

General Purpose Hose 20 Bar – Epdm
General Purpose Hose 20 Bar – Epdm
Tube: Black EPDM
Reinforcement: High tensile textile yarn
Cover: Red EPDM – abrasion and ozone resistant
Temp Range: -40° C +100° C (-40° F +212° F)
Applications: Compressed air designed for heavy-duty applications
Properties: Uniform thickness, Extreme temperature, flexibility, Light weight
Standard Colour And Finish: Inner tube – Black, Outer cover – Red, Finish – Smooth/Wrapped
Applicable Std: ISO 2398; IS 446
Note Taco shell packing available in 25, 50 and 100 feet with (1/4 NPT) and without fitings
Specification
| PART NO. | INTERNAL DIAMETER | OUTER DIAMETER | WORKING PRESSURE | BURSTING PRESSURE | BENDING RADIUS | WEIGHT | STD. LENGTH | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | mm | mm | bar | psi | bar | psi | Inch | mm | Kg/m | Mtr | |
| BRIH001-06 | 1/4 | 6 | 13 | 20 | 300 | 60 | 900 | 1.9 | 48 | 0.16 | 100/50 |
| BRIH001-08 | 5/16 | 8 | 15 | 20 | 300 | 60 | 900 | 2.5 | 64 | 0.19 | 100/50 |
| BRIH001-10 | 3/8 | 10 | 17 | 20 | 300 | 60 | 900 | 3.1 | 80 | 0.225 | 100/50 |
| BRIH001-12 | 1/2 | 12.5 | 21 | 20 | 300 | 60 | 900 | 4.1 | 104 | 0.33 | 100/50 |
| BRIH001-16 | 5/8 | 16 | 24 | 20 | 300 | 60 | 900 | 5 | 128 | 0.37 | 100/50 |
| BRIH001-19 | 3/4 | 19 | 27 | 20 | 300 | 60 | 900 | 6 | 152 | 0.43 | 100/50 |
| BRIH001-25 | 1 | 25 | 35 | 20 | 300 | 60 | 900 | 7.9 | 200 | 0.7 | 100/50 |
