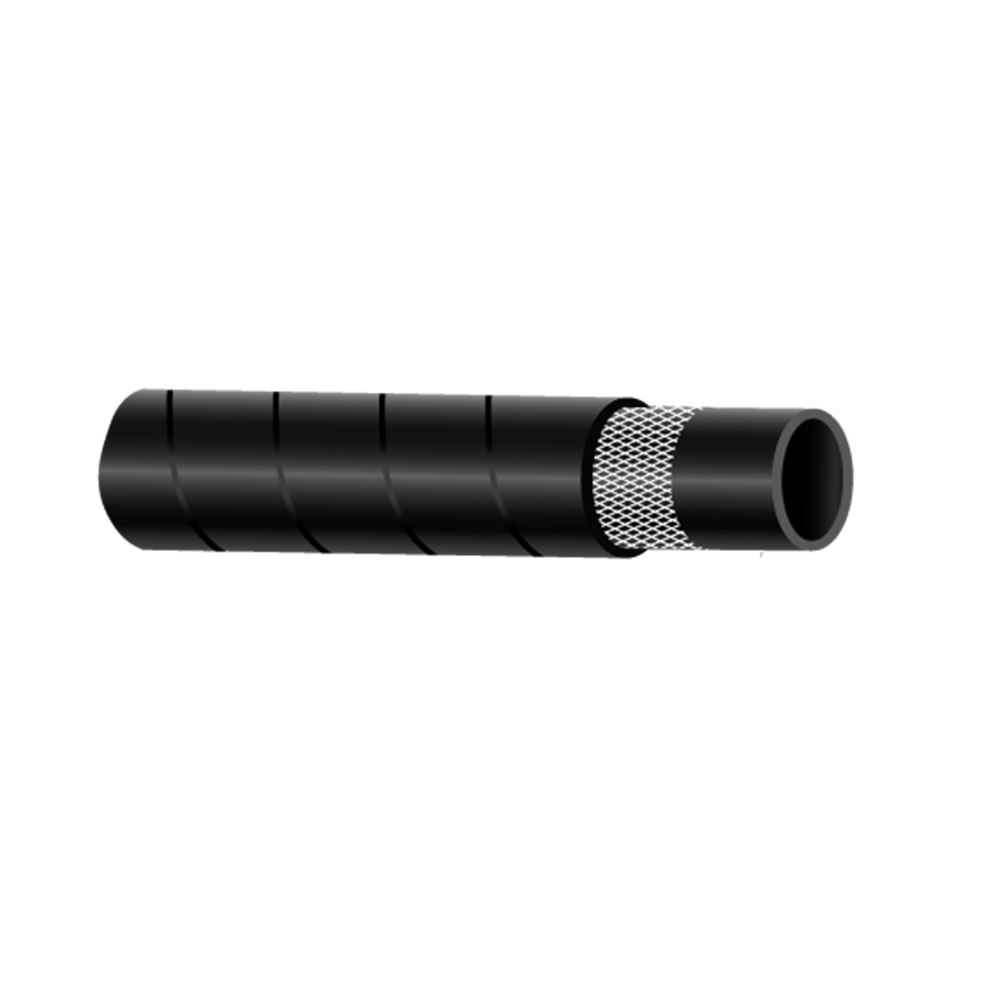

Cng Hose
Cng Hose
Tube: High moony viscosity, oil-resistant synthetic rubber
Reinforcement: Single braided high tensile yarn
Cover: Synthetic rubber resistant to abrasion and weather
Temp Range: -40° C +100° C Approx (-40° F +212° F Approx)
Applications: For use in motor vehicles with CNG Installations
Properties: For use in motor vehicles with CNG Installations
Standard Colour And Finish: Inner Tube – Black, Outer Cover – Black, Finish -Wrapped
Applicable Std: Bhagwati Rubber Industries
Specification
| PART NO. | INTERNAL DIAMETER | OUTER DIAMETER | WORKING PRESSURE | BURSTING PRESSURE | BENDING RADIUS | WEIGHT | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Inch | mm | mm | bar | psi | bar | psi | Inch | mm | Kg/m | |
| BRIH502-06 | 1/4 | 6 | 12.5 | 5 | 75 | 15 | 225 | 2.6 | 65 | 0.13 |
| BRIH502-08 | 5/16 | 8 | 14.5 | 5 | 75 | 15 | 225 | 3 | 76 | 0.15 |
| BRIH502-10 | 3/8 | 10 | 16 | 5 | 75 | 15 | 225 | 3.5 | 90 | 0.18 |
| BRIH502-12 | 1/2 | 12.5 | 20 | 5 | 75 | 15 | 225 | 4 | 101 | 0.26 |
| BRIH502-16 | 5/8 | 16 | 23.8 | 5 | 75 | 15 | 225 | 4.9 | 125 | 0.32 |
| BRIH502-19 | 3/4 | 19 | 28 | 5 | 75 | 15 | 225 | 6 | 152 | 0.41 |
| BRIH502-25 | 1 | 25 | 35 | 5 | 75 | 15 | 225 | 7 | 178 | 0.545 |
