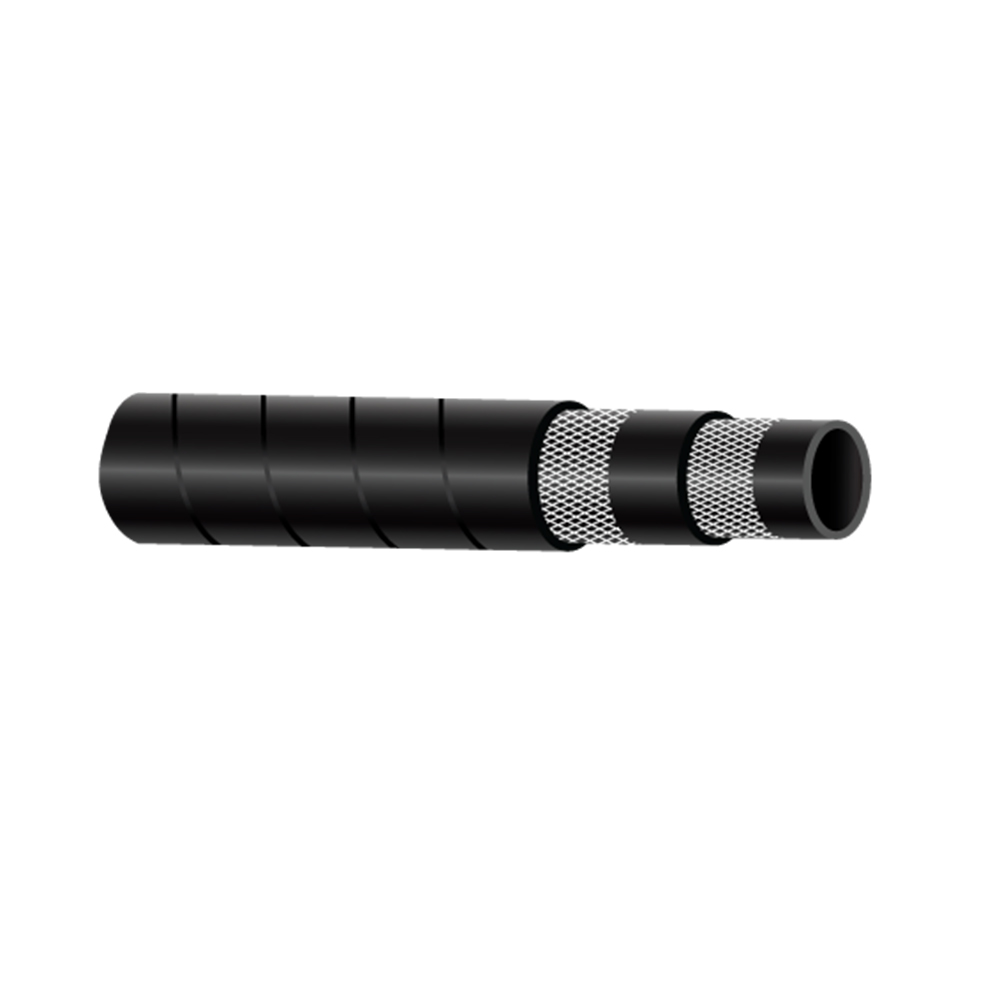

Air – Water Delivery Hose
Air – Water Delivery Hose
Tube: Specially compounded synthetic rubber
Reinforcement: High tensile textile yarn
Cover: Black Synthetic Elastomer – abrasion and ozone resistant
Temp Range: -30° C +80° C (-22° F +176° F)
Applications: Air and water delivery
Properties: Uniform Thickness, Seamless, Very strong
Standard Colour And Finish: Inner tube – black Outer cover – black Finish – Wrapped
Applicable Std: Bhagwati Rubber Industries
Specification
| PART NO. | INTERNAL DIAMETER | OUTER DIAMETER | WORKING PRESSURE | BURSTING PRESSURE | BENDING RADIUS | WEIGHT | STD. LENGTH | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | mm | mm | bar | psi | bar | psi | Inch | mm | Kg/m | Mtr | |
| BRIH001-19 | 3/4 | 19 | 28.5 | 10 | 150 | 30 | 450 | 6 | 152 | 0.5 | 60/40 |
| BRIH001-25 | 1 | 25 | 35.5 | 10 | 150 | 30 | 450 | 7.9 | 200 | 0.79 | 60/40 |
| BRIH001-32 | 1.1/4 | 32 | 43 | 10 | 150 | 30 | 450 | 9.8 | 250 | 1 | 40 |
| BRIH001-38 | 1.1/2 | 38 | 50 | 10 | 150 | 30 | 450 | 11.8 | 300 | 1.3 | 40 |
| BRIH001-51 | 2 | 51 | 63.5 | 10 | 150 | 30 | 450 | 16.5 | 420 | 1.95 | 40 |
