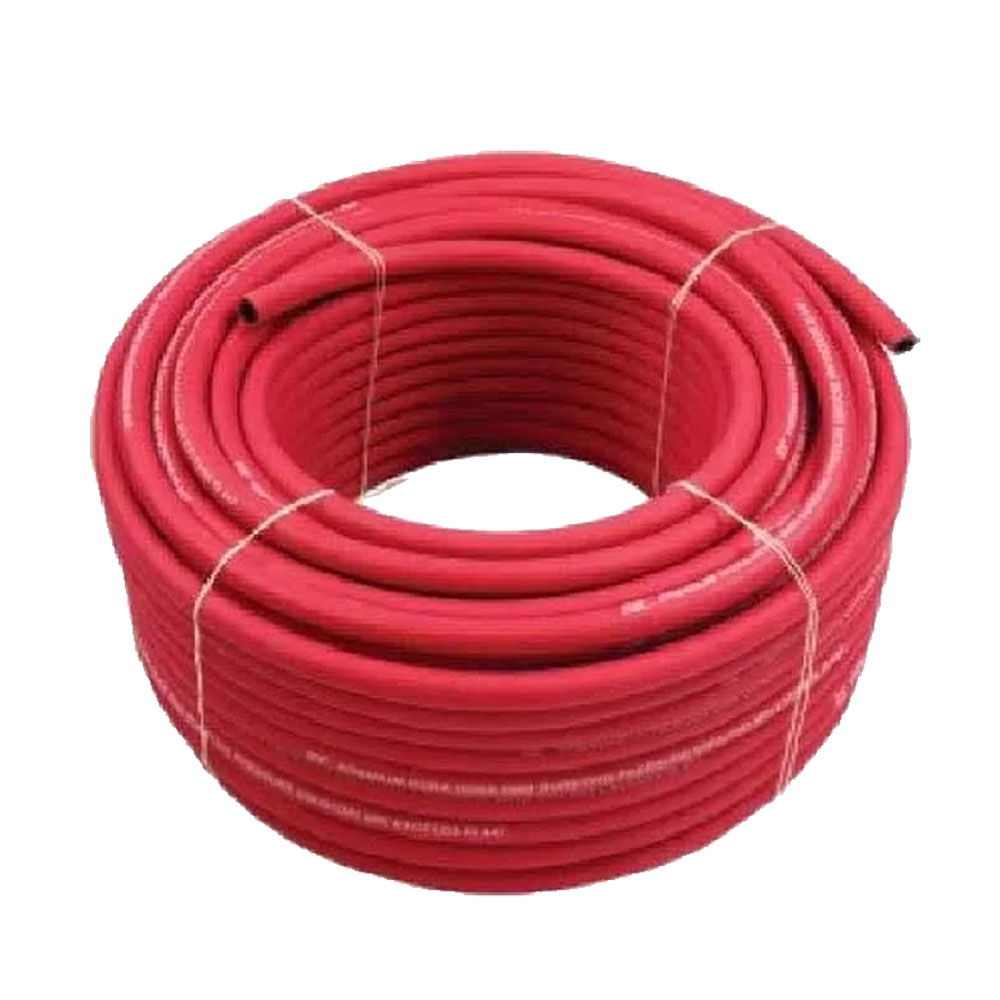

Air/ Pneumatic & Rock Drill Hose
Air/ Pneumatic & Rock Drill Hose
Manufactured from premium-grade compounds, our hoses are ideal for general air service applications. While cost-effective, they maintain the performance and durability expected from high-quality hoses. Produced in compliance with IS, BS, EN, and ISO standards, these hoses can also be supplied in custom lengths with fittings upon request.
Specification
Application:
Suitable for general construction, engineering industries, garages, shipyards, workshops, foundries, steel plants, irrigation projects, and a wide range of air and water applications.
Construction:
- Natural rubber tube
- Textile reinforcement
- Abrasion & weather-resistant cover
Technical Specifications:
Construction Lining: Seamless, uniform lining made from a blend of natural and synthetic rubber. Type-3 hoses feature oil mist-resistant lining for enhanced performance in demanding environments.
Reinforcement: Multiple plies of woven textile or high-strength synthetic fiber braiding ensure durability and pressure resistance.
Cover: Smooth or cloth-marked outer cover made from abrasion- and weather-resistant natural rubber compound.
Temperature Range: -31°F to +158°F
Length:
Sizes above 25mm typically available in 20-meter lengths (mandrel-made)
Smaller sizes available as molded braided hoses in continuous lengths
Color Options: Available in Red, Blue, Green, Black, Grey, and Yellow
Safety Factor: 1:3 (W.P. 200/300 PSI : B.P. 600/900 PSI) or 1:4 (W.P. 200 PSI : B.P. 800 PSI)
| PART NO. | OSE SIZE | WORKING PRESSURE | BURSTING PRESSURE | LENGTH OF EACH ROLL | ||||
|---|---|---|---|---|---|---|---|---|
| I.D | O.D | in PSI | in BAR | in PSI | in BAR | |||
| inch | mm | mn | 300 | 20 | 900 | 60 | 50/100 Meters | |
| BRIH704-6 | 1/4″ | 6.3 | 5.1 | 300 | 20 | 900 | 60 | 50/100 Meters |
| BRIH704-8 | 5/16″ | 8 | 17.5 | 300 | 20 | 900 | 60 | 50/100 Meters |
| BRIH704-10 | 3/8″ | 10 | 19.8 | 300 | 20 | 900 | 60 | 50/100 Meters |
| BRIH704-12 | 1/2″ | 12.5 | 23 | 300 | 20 | 900 | 60 | 50/100 Meters |
| BRIH704-16 | 5/8″ | 16 | 26.2 | 300 | 20 | 900 | 60 | 50/100 Meters |
| BRIH704-19 | 3/4″ | 19 | 30.1 | 300 | 20 | 900 | 60 | 50/100 Meters |
| BRIH704-25 | 1″ | 25 | 33.4 | 300 | 20 | 900 | 60 | 50/100 Meters |
| BRIH704-31 | 1.1/4″ | 31.5 | 46 | 200 | 15 | 600 | 45 | 20 Meters |
| BRIH704-38 | 1.1/2″ | 38 | 52.4 | 200 | 15 | 600 | 45 | 20 Meters |
| BRIH704-50 | 2″ | 50 | 66.7 | 200 | 15 | 600 | 45 | 20 Meters |
