Air Hose – Oil Resistant 35 Bar
Air Hose – Oil Resistant 35 Bar

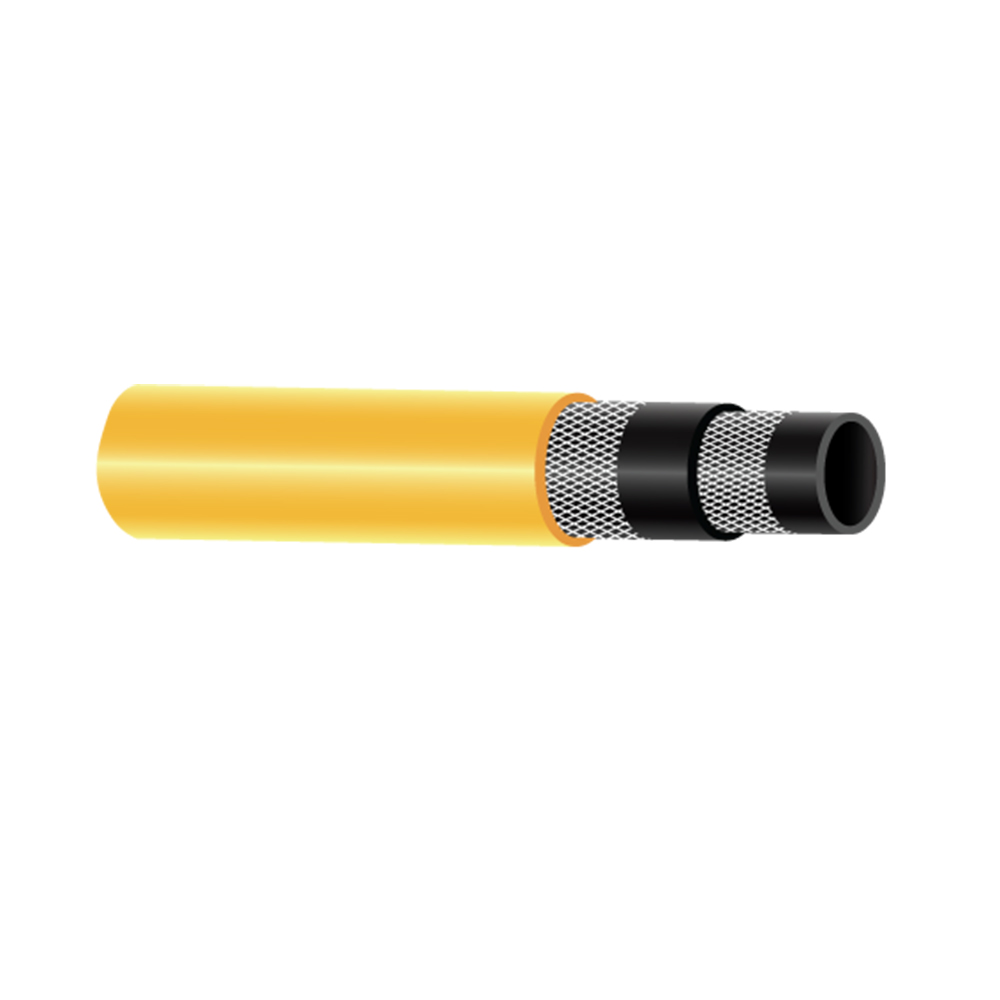

Tube: Black synthetic NBR – RMA Class A (High Oil Resistance)
Reinforcement: Double braided high tensile polyester synthetic yarn
Cover: Yellow synthetic rubber, RMA Class A (High Oil Resistance)
Temp Range: -30° C +80° C (-22° F +176° F)
Applications: Compressed air and general industrial application
Properties: Extreme temperature flexibility, Oil resistance (RMA CLASS A)
Standard Colour And Finish: Inner tube–Black, Outer cover–Yellow, Finish–Smooth/Wrapped
Applicable Std: Bhagwati Rubber Industries
Specification
| PART NO. | INTERNAL DIAMETER | OUTER DIAMETER | WORKING PRESSURE | BURSTING PRESSURE | BENDING RADIUS | WEIGHT | STD. LENGTH | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | mm | mm | bar | psi | bar | psi | Inch | mm | Kg/m | Mtr | |
| BRIH003-06 | 1/4 | 6 | 15 | 35 | 500 | 105 | 1500 | 2.4 | 60 | 0.26 | 100/50 |
| BRIH003-08 | 5/16 | 8 | 17 | 35 | 500 | 105 | 1500 | 3.1 | 80 | 0.31 | 100/50 |
| BRIH003-10 | 3/8 | 10 | 19 | 35 | 500 | 105 | 1500 | 3.9 | 100 | 0.345 | 100/50 |
| BRIH003-12 | 1/2 | 12.5 | 23.5 | 35 | 500 | 105 | 1500 | 4.3 | 110 | 0.43 | 100/50 |
| BRIH003-16 | 5/8 | 16 | 26.5 | 35 | 500 | 105 | 1500 | 5.5 | 140 | 0.535 | 100/50 |
| BRIH003-19 | 3/4 | 19 | 30 | 35 | 500 | 105 | 1500 | 6.3 | 160 | 0.615 | 100/50 |
| BRIH003-25 | 1 | 25 | 37.5 | 35 | 500 | 105 | 1500 | 8.3 | 210 | 0.865 | 100/50 |
