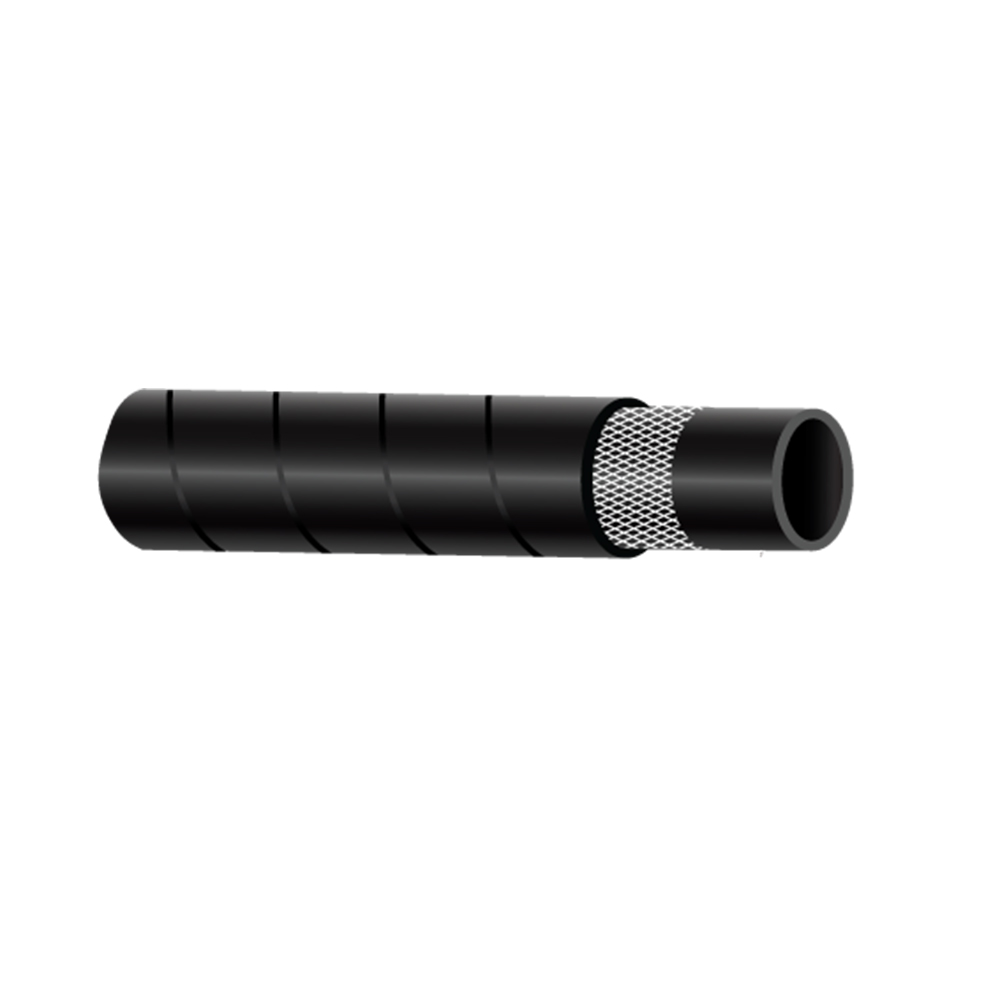

Air Brake Hose
Air Brake Hose
Automotive hoses are flexible tubes that are used to transport fluids and gases in vehicles. They are made of a variety of materials, including rubber, plastic, and metal, and are designed to withstand different levels of pressure and temperature.
Tube: NBR, oil-resistant synthetic rubber
Reinforcement: High tensile synthetic yarn
Cover: Black NBR – abrasion and ozone resistant
Temp Range: -40°C~ + 100°C (-40° F +212° F)
Applications: For compressed air brake line systems on trailers, trucks and buses.
Properties: Uniform Thickness Abrasion resistance, Ozone resistance, Flexible
Standard Colour And Finish: Inner tube – Black, Outer cover – Black, Finish – Wrapped
Applicable Std: Bhagwati Rubber Industries
Specification
| PART NO. | INTERNAL DIAMETER | OUTER DIAMETER | WORKING PRESSURE | BURSTING PRESSURE | BENDING RADIUS | WEIGHT | STD. LENGTH | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | mm | mm | bar | psi | bar | psi | Inch | mm | Kg/m | Mtr | |
| BRIH501-06 | 1/4 | 6 | 15.6 | 20 | 300 | 60 | 900 | 2.5 | 64 | 0.255 | 100/50 |
| BRIH501-08 | 5/16 | 8 | 17.5 | 20 | 300 | 60 | 900 | 3 | 76 | 0.285 | 100/50 |
| BRIH501-10 | 3/8 | 10 | 19.5 | 20 | 300 | 60 | 900 | 3.5 | 90 | 0.33 | 100/50 |
| BRIH501-11 | 7/16 | 11 | 20.3 | 20 | 300 | 60 | 900 | 4 | 102 | 0.343 | 100/50 |
| BRIH501-12 | 1/2 | 12.5 | 23 | 20 | 300 | 60 | 900 | 4.3 | 110 | 0.439 | 100/50 |
| BRIH501-16 | 5/8 | 16 | 27 | 20 | 300 | 60 | 900 | 4.7 | 120 | 0.557 | 100/50 |
